INSTRUMENTATION DBB BALL VALVES

Product Overview

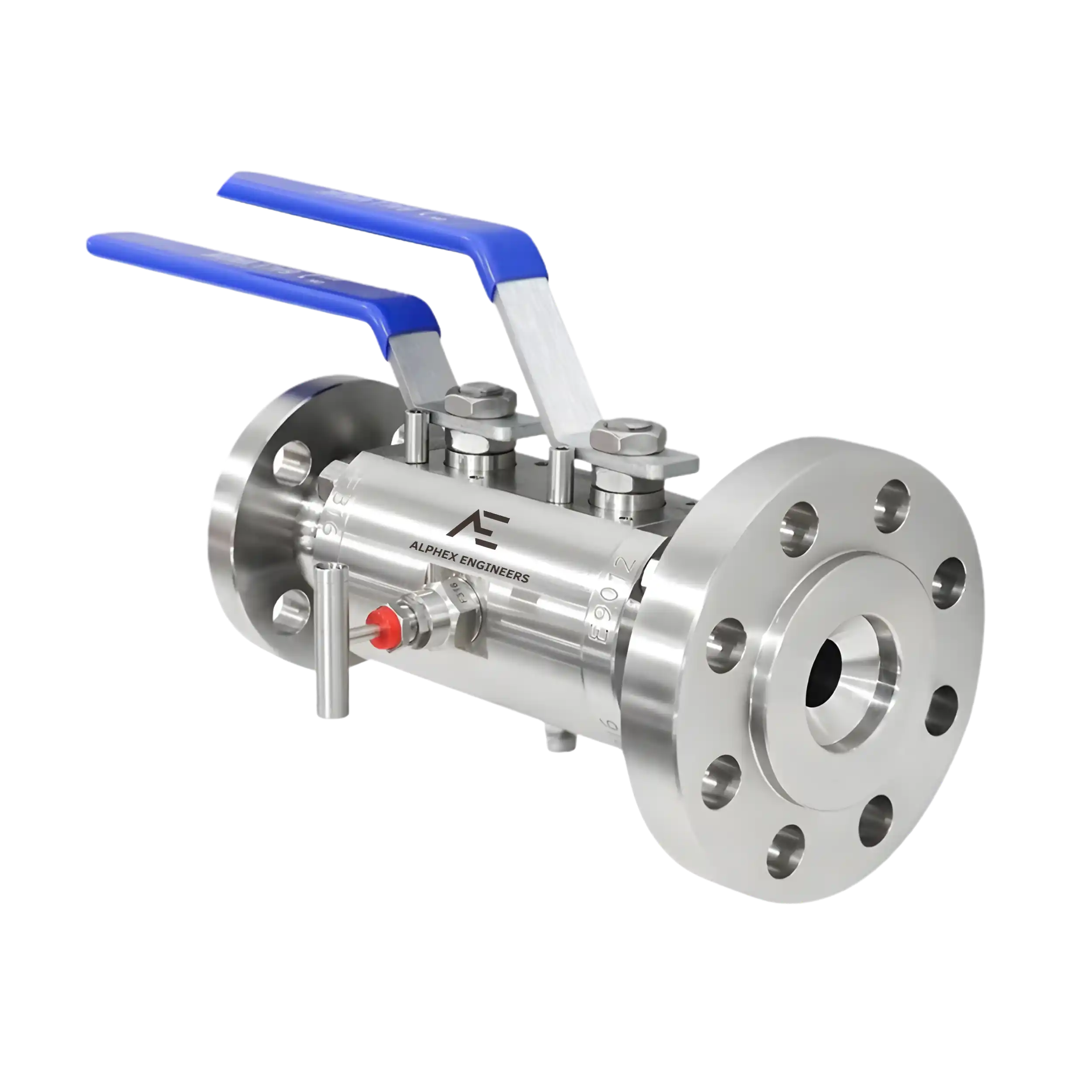

Instrumentation Double Block & Bleed Ball Valves – 10 mm, 14 mm & 19 mm Bore. Alphex Engineers manufactures high-performance Instrumentation Double Block & Bleed (DBB) Ball Valves designed for compact isolation, venting, and safe maintenance in critical instrumentation and process applications across the Oil & Gas, Petrochemical, Offshore, Power, and Process industries.

These valves combine two isolation valves with an integrated bleed/vent arrangement in a compact single-body design, significantly reducing leak paths, installation space, tubing connections, and maintenance requirements compared to conventional multi-valve assemblies. Instrumentation DBB Ball Valves from Alphex Engineers are suitable for pressure gauges, transmitters, analyzers, manifolds, impulse lines, and instrumentation hook-up systems.

Bore Sizes

• 10 mm Bore
• 14 mm Bore
• 19 mm Bore
• Designed for low-pressure drop and reliable flow characteristics in instrumentation applications.

Valve Construction

• Floating Ball Construction
• Compact quarter-turn isolation design
• Bubble-tight shut-off
• Suitable for instrumentation and impulse line services
• Trunnion Mounted Construction
• Reduced operating torque for higher pressure applications
• Enhanced seat stability and operational reliability
• Suitable for severe and high-cycle service conditions

DBB & DIB Configurations

• DBB Type A : Two independent isolation valves with integrated bleed valve Positive double isolation for maintenance safety
• DBB Type B : Single compact valve body with dual sealing arrangement and bleed function Reduced installation space and leak paths
• DIB-1 Configuration : Double piston seats on upstream and downstream sides. Bi-directional sealing on both ends. High integrity isolation arrangement.
• DIB-2 Configuration : One double piston seat with one self-relieving seat. Controlled cavity pressure relief for thermal expansion protection.

Design & Construction Features

• Floating & Trunnion Mounted Design
• Full Bore & Reduced Bore Options
• One Piece / Two Piece / Three Piece Construction
• Side Entry & Top Entry Design
• Blow-out Proof Stem
• Anti-static Device
• Fire Safe Design as per API 607 / API 6FA
• Live Loaded Packing Arrangement
• Low Emission Design
• Bubble Tight Shut-off
• Cavity Vent & Drain Arrangement
• Self-relieving & Double Piston Seat Design
• Sealant Injection Provision
• Cryogenic Extended Bonnet (Optional)
• Fugitive Emission Compliance
• NACE MR0175 Compliance
• ISO 5211 Mounting Pad
• Locking Arrangement
• Spring Loaded Seats
• Lip Seal & O-ring Sealing Design

End Connections

Instrumentation DBB Ball Valves from Alphex Engineers are available with threaded end connections as per international standards:

• NPT Thread Connections As per : ASME B1.20.1
• Available in:
  • Male NPT × Female NPT
  • Male NPT × Male NPT
  • Female NPT × Female NPT
• BSP Thread Connections As per : ISO 228 (BSPP Threads)
• Available in:
  • Male BSPP × Female BSPP
  • Male BSPT × Female BSPT
  • Female BSPP × Female BSPP

Seat & Packing Materials

• Soft Seats
• PEEK
• PCTFE
• PTFE
• RPTFE
• Metal Seat Option (For high temperature and severe service applications)
• Packing Options
• Graphite / Grafoil
• Low Emission Packing

Operation Options

• Lever Operated
• T-Bar Operated
• Gear Operated
• Pneumatic Actuated
• Electric Actuated

Material of Construction (MOC) Forged Materials

• ASTM A105
• ASTM A350 LF2
• ASTM A182 F304 / F304L
• ASTM A182 F316 / F316L
• ASTM A182 F51 / F53 / F55 (Duplex & Super Duplex) Cast Materials
• ASTM A216 WCB / WCC
• ASTM A351 CF8 / CF8M
• ASTM A995 4A / 5A / 6A
• Exotic Materials
• Monel 400
• Hastelloy C276
• Inconel 625 / 718
• Incoloy
• Titanium
• 6Mo Stainless Steel
• Nickel Aluminium Bronze (C95800)
• Ball & Trim Materials
• SS316
• Duplex / Super Duplex
• Inconel
• Monel
• Tungsten Carbide Coating
• Chrome Carbide Coating
• ENP Coating

Design Standards & Testing

• Designed and manufactured in accordance with :
  • API 6D
  • API 608
  • ASME B16.34
  • API 598
  • ISO 15848
  • ISO 5211
• Optional Compliance :
  • NACE MR0175
  • API 6FA
  • API 607

Size & Pressure Range

• Bore Sizes : 10 mm / 14 mm / 19 mm
• End Connections : ¼” to 1”
• Pressure Rating : Up to 10,000 PSI
• ASME Pressure Class : Up to 2500#
